• IEC 60601-1
  The primary standard for medical electrical devices /equipment that are in contact with patient, covering basic safety and essential performance requirements.
• IEC 61010-1
  Applies to the safety requirements of laboratory and test equipments used in medical environments

• ISO 14971
  Standard specifying a systematic, lifecycle-wide risk management process for medical device manufacturers to identify, evaluate, control, and monitor the safety of the devices.
• ISO13485
  Applies to quality assurance in the manufacture of medical devices/instruments

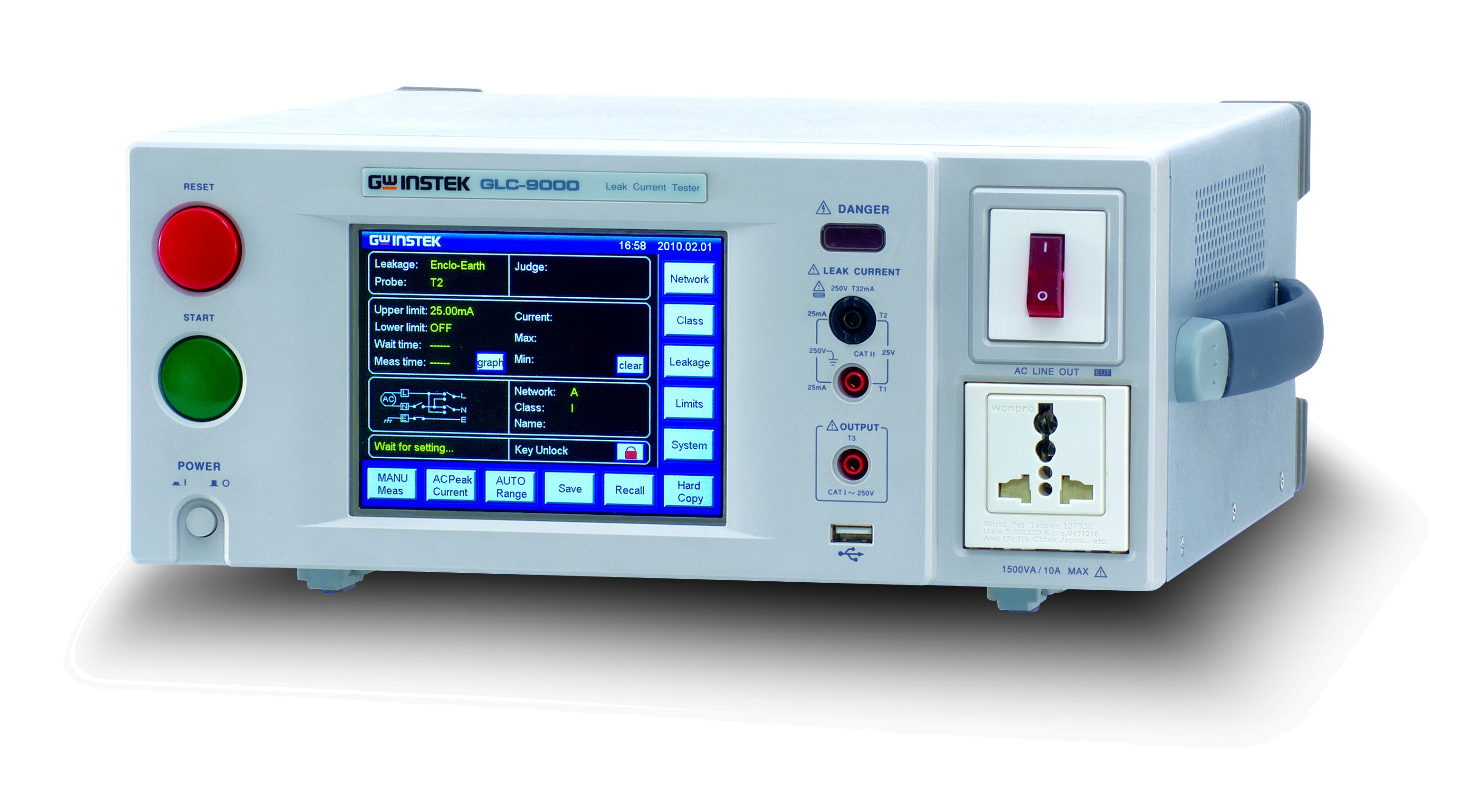

Features

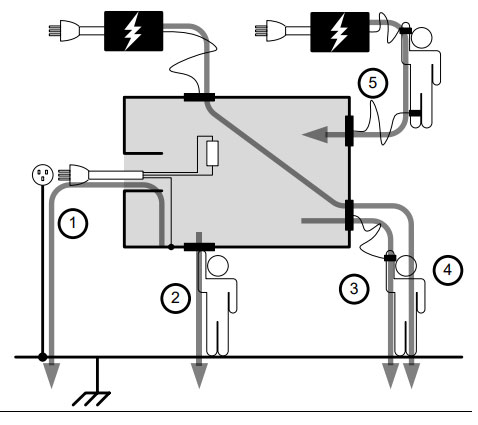

• Suitable for Medical Electrical & General Electrical of Leakage Current Measurement

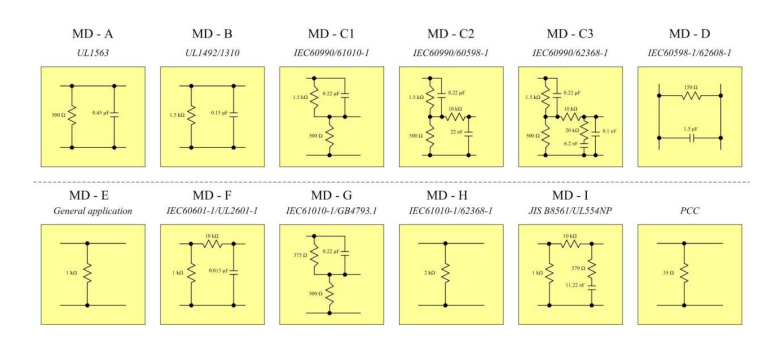

• 12 Different Measurement Network to Simulate the Resistance of Human Body (Including IEC 60601-1:2020 3.2)
• The Measurement of Maximum Allowable Leakage Current is Up to 50mA
• External Terminal for Extension MD Connection
• MD OUT Terminal can be Connected to an Oscilloscope for Convenient Comparison of Measured Waveforms
• 30 Sets Memories for Test Parameter; 1000 Sets Memories for Measured Data
• Test Parameter Export/Import Function Through USB Host
• USB Storage for Measurement Data/Screen Capture
• Various Standard Interfaces: RS-232C, USB Host & Device, LAN, Signal I/O and GPIB (Optional)

The GPT-15003 helps support testing in accordance with key safety standards:

• IEC 60601-1
• IEC 61010-1
• ISO 13485

Features

• 500VA AC Test Capacity (short circuit current > 200 mA)
• Comply with IEC 61010-2-034 standard
• Manual / Auto Mode
• RMS Current Measurement
• Statistics & Analysis Function
• Sweep Function for DUT Characteristic Analysis

• Convenience Listed AUTO mode easy to read result & judge
• Internal Storage & USB Storage available
• Barcode Function available
• Rear panel output available
• Interface: RS-232C, USB host/device, Signal I/O and option GPIB or LAN

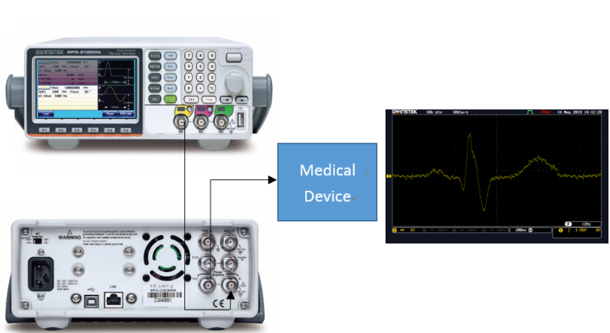

Physiological Signal Simulation

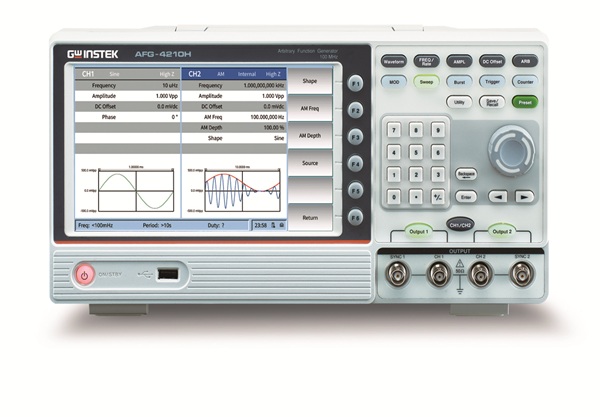

The AFG-4000 Series can generate complex and customizable waveforms to simulate real biological signals such as:

• ECG (Electrocardiogram)
• EEG (Electroencephalogram)
• EMG (Electromyogram)

Features

• Provide single-channel or dual-channel output
  • Single channel Bandwidth : 25MHz
  • Dual Channel Bandwirh: 25/35/60/80/100/250MHz

• Built-in Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic wave, Arbitrary wave: Min. resolution is 1μHz
• Arbitrary function: Sampling rate
• Sampling rates: 1.25GSa/s/: 500MSa/s, 125MSa/s
• Modulation: AM, DSB-AM, FM, PM, PWM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, OSK, SUM
• Built-in sweep, burst, counter function
• AFG-4125AE Built-in Power Amplifier function
• Communication interface:
• 8” TFT LCD Display, 800*480 resolution; Multi-Touch Display: AFG-4235/ 4260/ 4280/ 4210H/ 4225H

Critical Roles in Medical Testing

The ASR-6000 functions as a highly stable AC/DC source  that ensures medical devices operate safely and reliably under various electrical conditions.

• Medical Safety Standards Compliance: It is used to perform rigorous safety tests (such as IEC 60601-1 for medical electrical equipment) by simulating voltage sags, surges, and frequency fluctuations to ensure the device remains safe for patients during power anomalies.
• Low Noise & High Stability: For sensitive diagnostic equipment (e.g., imaging systems or patient monitors), the ASR-6000's ability to provide stable , low-noise power is vital to prevent interference that could lead to inaccurate readings.
• Ground Loop Mitigation: It features a grounded neutral output option that reduces ground noise, which is essential for protecting sensitive medical electronic components from effects that could damage the hardware or skew data.

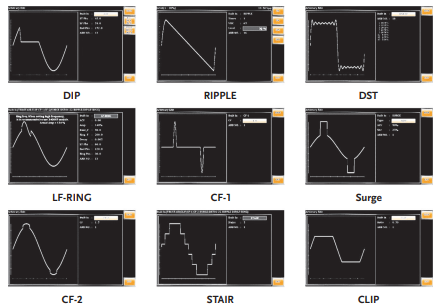

• Arbitrary Waveform Simulation: With over 253 built-in waveforms and sequence editing, engineers can simulate complex, real-world power environments that a medical device might face in a hospital setting, including phase failures or unbalanced three-phase power conditions.
• High-Power Medical Equipment: Its high capacity (up to 36 kVA/kW) makes it suitable for testing larger medical systems like MRI or CT scanners that require substantial, reliable power loads during development and verification

Features

• 10 output modes: including external input signal frequency and mains synchronization (SYNC), external voltage controlled internal amplifier output (VCA)
• Multi-channel output function
• Supports 1P2W, 1P3W, 3P4W output
• Voltage output phase voltage: 0-350 Vrms and DC voltage 0- ±500V
• Frequency Range ：AC Mode: 15.00 Hz to 2000.0 Hz, AC+DC Mode: 1.00 Hz to 2000.0 Hz (Stand-alone unit ASR-6450/6600) ；
• Support Parallel Connection Type Up to 36 kVA / 36 kW Maximum
• Standard interfaces: RS-232C, USB, LAN
