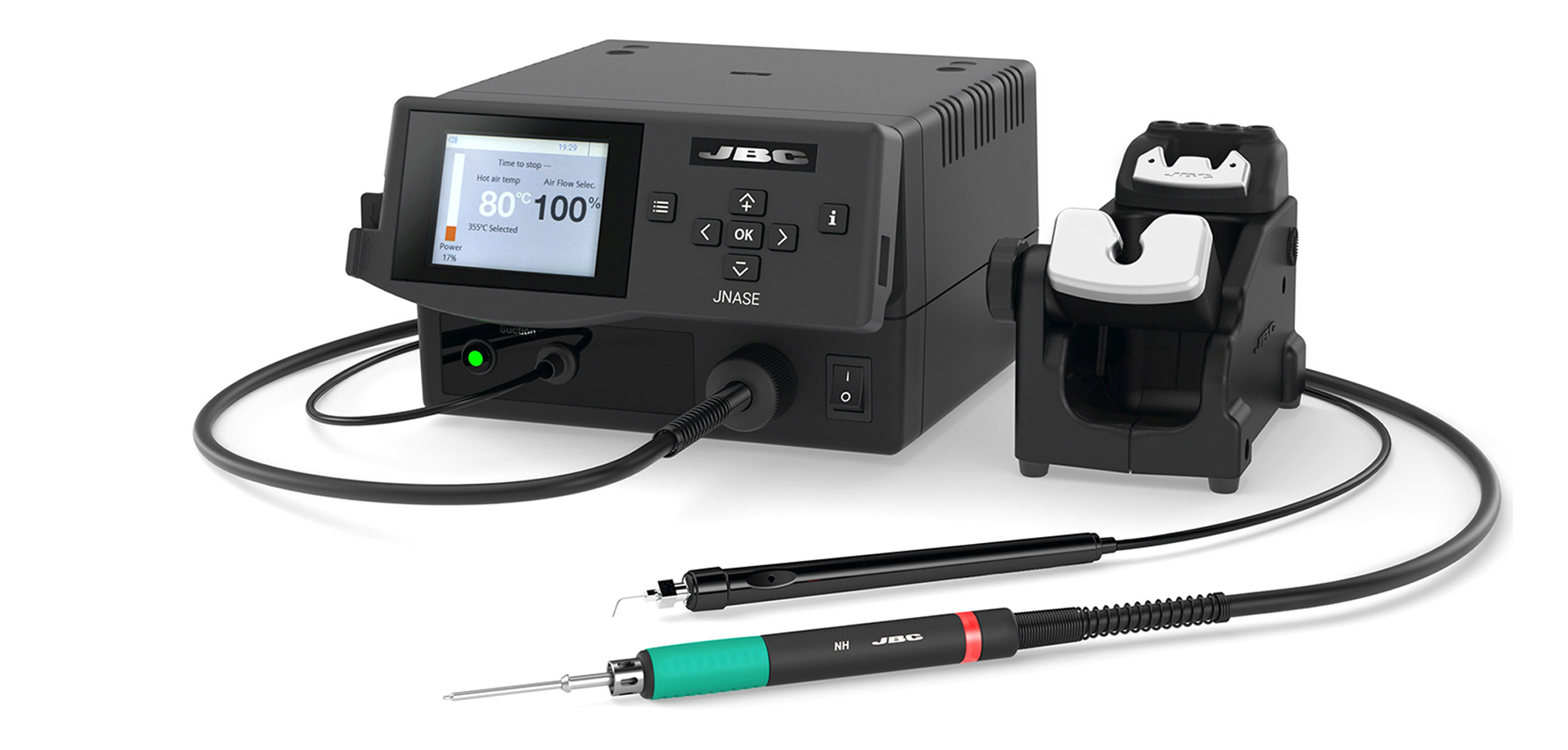

JNASE Station High-Precision Hot Air
Description
JNASE is the only Hot Air Station to rework SMDs without affecting nearby components.
It is the perfect station for easy and high-precision reworking of components as small as 01005, even under the magnifying glass. Includes :

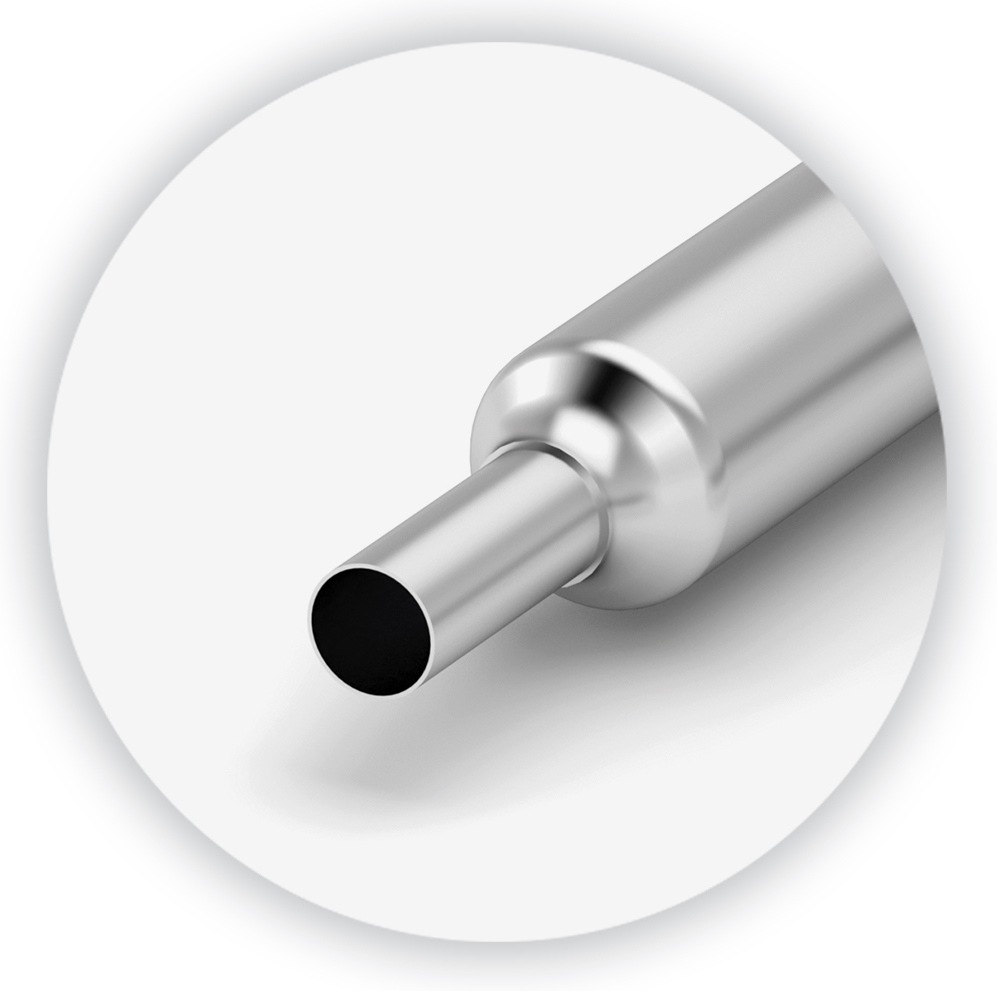

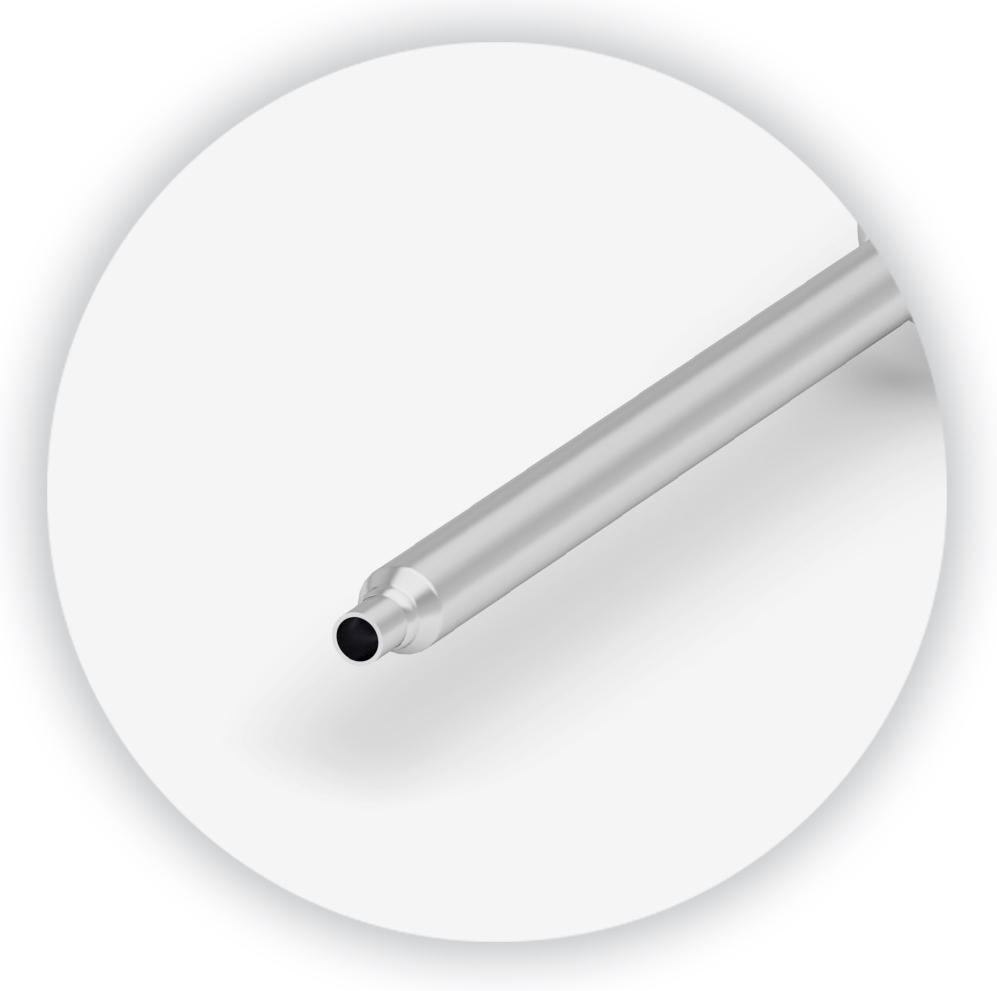

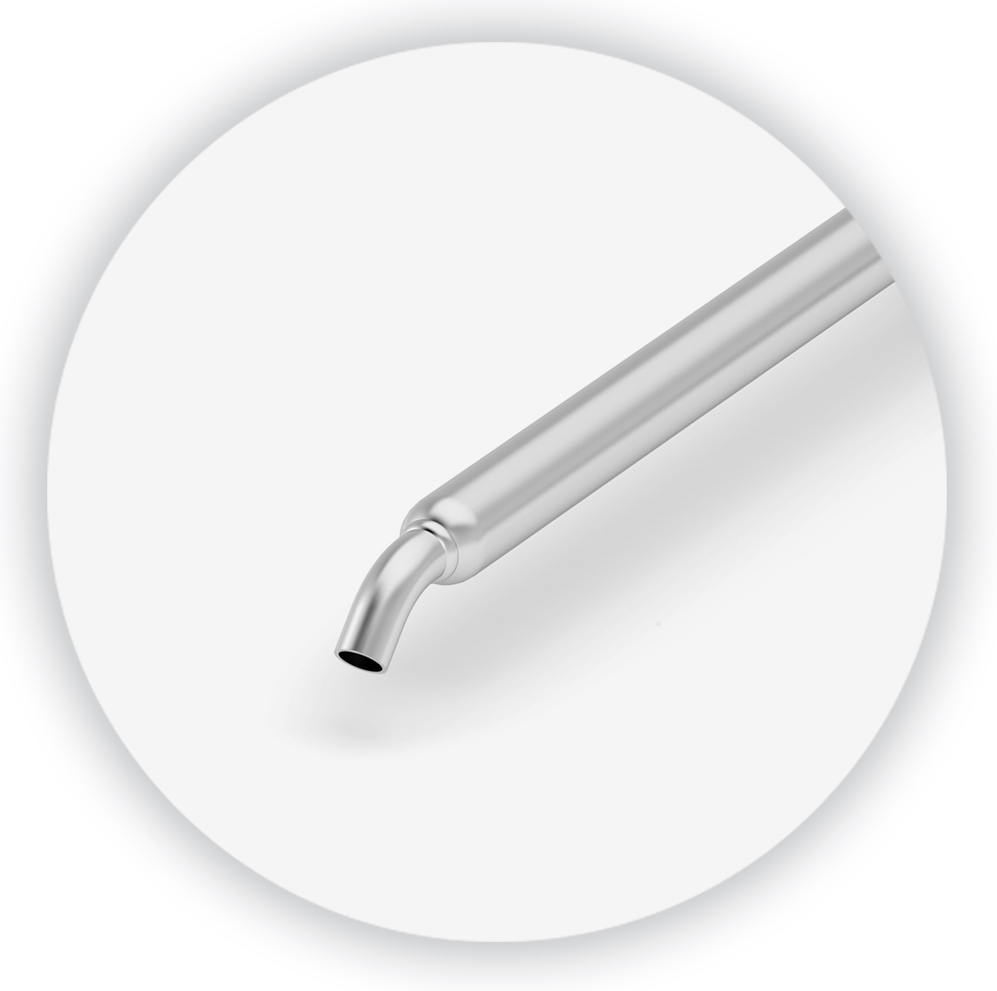

- NH High-Precision Heater Hose Set which works with J125 Cartridge Range.
- T260 Pick & Place to position and remove components easily thanks to the built-in suction pump.
Description
JNASE is the only Hot Air Station to rework SMDs without affecting nearby components.
It is the perfect station for easy and high-precision reworking of components as small as 01005, even under the magnifying glass. Includes :
- NH High-Precision Heater Hose Set which works with J125 Cartridge Range.
- T260 Pick & Place to position and remove components easily thanks to the built-in suction pump.
Specifications
| Specification |
| Nominal power |
70W |
| Selectable temperature |
150 to 450°C / 300 to 840°F |
| Air flow regulation |
0.15 - 2.5 SLPM |
| Vacuum |
53% / 397 mmHg / 15.6 inHg |
| ESD safe |
Meet ANSI / ESD S20.20-2021 |
| Equipotential bonding |
Connection to EPA |
| USB-A |
Firmware update Graphics and profiles |
| USB-B |
PC communications |
| RJ12 Connector |
Remote control or FAE Fume Extractor connection |
| Pedal Connector |
Tool control |
| Weight and Dimensions |
| Control Unit |
180 x 170 x 110 mm / 2.83 kg.
7.09 x 6.69 x 4.33 in / 6.23 lb. |
| Package |
425 x 295 x 495 mm / 4.20 kg.
16.73 x 11.61 x 19.49 in / 9.26 lb. |
